Product Code |
ASR1001X-5G-K9 |
|
Rack Height |
1RU |
|
System Bandwidth |
2.5G (default) / 5G, 10G, 20G (upgrade) |
|
Router Processor (RP) |
Quad-core 2.13Ghz processor |
|
Build-in Gigabit Ethernet port |
6 x SFP ports, 2 x SFP+ ports |
|
Redundancy |
Software (license purchase separately) |
|
SIP and Ethernet line card |
Integrated in chassis; not upgradable |
|
Embedded hardware-based encryption |
up to 8-Gbps crypto support throughput |
|
Rack-mounting |
19-inch |
|
DRAM Memory |
4 GB |
|
Flash Memory |
8 GB |
|
Shared port adapters |
1 SPA slot |
|
External USB flash memory |
1-GB USB flash-memory support |
Note:
|
① |
NIM slots |
⑦ |
USB port 1 |
|
② |
CON—One mini eUSB por |
⑧ |
USB port 0 |
|
③ |
STAT—Status LED |
⑨ |
Shared port adapter slot |
|
④ |
CRIT LED—Critical alarm indicator MAJ LED—Major alarm indicator MIN LED—Minor alarm indicator |
⑩ |
MGMT—One RJ-45 10/100/1000 management Ethernet port. |
|
⑤ |
6 x SFP ports, 2 x SFP+ ports |
⑪ |
AUX—One RJ-45/RS-232 compatible auxiliary port |
|
⑥ |
CON—One RJ-45/RS-232 compatible console port |
⑫ |
PWR—Power LED |
*Six built-in 1 GE SFP-only interfaces (do not support SFP+), and two built-in 10 GE SFP+interfaces (support only 10-GE rate)

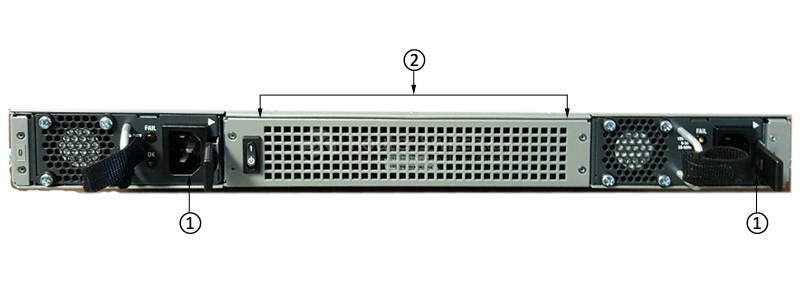

Figure 3 shows the back panel of ASR1001X-5G-K9.
Note:
|
① |
Two power supplies, either two AC power supplies or two DC power supplies are accessed from the rear of the router and are hot-swappable. |
|
② |
Four internal fans draw cooling air into the chassis and across internal components to maintain an acceptable operating temperature. |
ASR1001X-5G-K9 Specifications |
|
|
Physical specifications Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets. Refer to the applicable hardware installation guide for additional details. |
Height: 1.71 in. (43.43 mm) Width: 17.3 in. (439.42 mm) Depth: 18.17 in. (461.5 mm) Weight: ● 25 lb (11.35 kg) fully loaded Note: The Cisco ASR 1001-X Router has the route processor, ESP, and SIP integrated. |
|
Default memory |
8-GB DRAM shared across route processor, ESP, and SIP |
|
Number of SIPs or Ethernet line cards supported |
Integrated in chassis |
|
Shared port adapters |
1 single-height SPA slot |
|
Ethernet port adapters |
N/A |
|
Cisco ASR 1000 Series ESP |
Integrated in chassis |
|
Route processor |
Integrated in the chassis: Cisco ASR 1001-X Series Route Processor with Quad Core Processor |
|
Redundancy |
Software: Yes |
|
Built-in Gigabit Ethernet ports |
Yes: 6 Gigabit Ethernet Small Form-Factor Pluggable (SFP) ports |
|
Built-in 10 Gigabit Ethernet port |
Yes: Two 10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) ports Note:Built-in 10-GB ports cannot be reduced to 1-GB speed. |
|
Network interface module |
Yes |
|
Cisco ASR 1000 Series |
Cisco ASR 1001-X |
|
ESP support |
Cisco ASR 1000 Series 2.5-Gbps ESP (default) Upgradable through a software-activated feature license to 5, 10, or 20 Gbps |
|
ESP bandwidth |
2.5 to 20 Gbps |
|
ESP memory |
Share the same control memory on route processor |
|
SIPs and Ethernet line cards |
Integrated in chassis; not upgradable |
|
Embedded hardware-based encryption |
Yes: Up to 8-Gbps crypto support throughput |
|
Minimum Cisco IOS XE Software release |
Cisco IOS XE Software Release 3.12.0 |
|
Rack-mounting |
Yes: 19-inch |
|
Wall-mounting |
No |
|
External USB flash memory |
1-GB USB flash-memory support |
|
Redundant power supply |
Yes: Dual power supplies by default; option of either AC or DC power supply Note: A mix of one AC and one DC power supply is not supported. |
|
Power input |
Worldwide ranging AC input range (85 to 264 VAC) Worldwide ranging DC (-40 to -72V; 48V nominal) |
|
Power consumption |
● Maximum (DC): 242W ● Maximum (AC): 250W ● Maximum (out): 250W |
|
Airflow |
Front-to-back |
|
Operating temperature (nominal) |
32 to 104°F |
|
Operating temperature (short-term) |
32 to 122°F |
|
Operating humidity (nominal) (relative humidity) |
10 to 85% |
|
Operating humidity (short-term) |
5 to 90% |
|
Storage temperature |
-40 to 150°F (-40 to 70°C) |
|
Storage humidity (relative humidity) |
5 to 95% |
|
Operating altitude |
-500 to 10,000 feet |
|
Network Equipment Building Standards (NEBS) |
GR-1089 and GR-63 (in progress) |
|
EMC standards |
● FCC 47 CFR Part 15 Class A ● VCCI Class A ● AS/NSZ Class A ● ICES-003 Class A ● EN55022/CISPR 22 Information Technology Equipment (Emissions) ● EN55024/CISPR 24 Information Technology Equipment (Immunity) ● EN300 386 Telecommunications Network Equipment ● (EMC) ● EN50082-1/EN61000-6-1 Generic Immunity Standard |
|
Safety Standard |
UL60950-1 CSA C22.2 No. 60950-1-03 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 |
