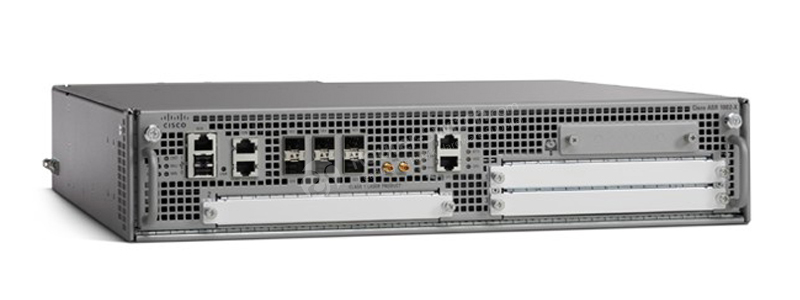

Figure 1 shows the appearance of ASR1002X-10G-K9.
Table 1 shows the Quick Specs.
|
Product Code |
ASR1002X-10G-K9 |
|
Rack Height |
2RU |
|
System Bandwidth |
5G (default) / 10G, 20G,36G (upgrade) |
|
Router Processor (RP) |
Dual-core 2.13Ghz processor |
|
Build-in Gigabit Ethernet port |
6 x SFP ports |
|
Redundancy |
Software (license purchase separately) |
|
SIP and Ethernet line card |
1 ESP slot |
|
Embedded hardware-based encryption |
Integrated ASR 1000-SIP10, not upgradable |
|
Rack-mounting |
19-inch |
|
DRAM Memory |
4GB-shared across RP, ESP, and SIP |
|
Flash Memory |
8 GB |
|
Shared port adapters |
3 SPA slots |
|
External USB flash memory |
4-GB USB flash-memory support |
Figure 2 shows the front panel of ASR1002X-10G-K9.
Note:
|
① |
Built-in 6x1GE SPA in slot 0 |
|
② |
SPA slot 1 |
|
③ |
SPA slot 3 |
|
④ |
SPA slot 2 |
Figure 3 shows the back panel of ASR1002X-10G-K9.
*ASR1002X-10G-K9 also support DC power supply but the rear panel is different.
*Caution! Use only AC power supplies or DC power supplies in the Cisco ASR1002X-10G-K9 Router. Do not mix power supply types.
ASR1002X-10G-K9 ASR 1002-X |
|
|
Physical specifications Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets. Refer to the applicable hardware installation guide for additional details. |
Height: 3.5 in. (88.9 mm) Width: 17.2 in. (437.4 mm) Depth: 18.15 in. (461.0 mm) Weight: ● 38.25 lb (17.36 kg) (with dual AC power supply and SPA blank covers) ● 39.05 lb (17.72 kg) (with dual DC power supply and blank covers) ● No SPAs included Note: The Cisco ASR 1002-X has the route processor, ESP, and SIP integrated. |
|
Default memory |
4-GB DRAM shared across route processor, ESP, and SIP |
|
Number of SIPs or Ethernet line cards supported |
Integrated in chassis |
|
Shared port adapters |
3 SPA slots |
|
Ethernet port adapters |
N/A |
|
Cisco ASR 1000 Series ESP |
Integrated in chassis |
|
Route processor |
Integrated in the chassis: Cisco ASR 1002-X Series Route Processor with Quad Core Processor |
|
Redundancy |
Software: Yes |
|
Built-in Gigabit Ethernet ports |
Yes: 6 Gigabit Ethernet SFP ports |
|
Built-in 10 Gigabit Ethernet port |
No |
|
Network interface module |
No |
|
Cisco ASR 1000 Series |
Cisco ASR 1002-X |
|
ESP support |
Cisco ASR 1002-X ESP with 5-Gbps (default) Upgradable through software-activated feature license to 10, 20, or 36 Gbps |
|
ESP bandwidth |
5 to 36 Gbps |
|
ESP memory |
Share the same control memory on route processor |
|
SIPs and Ethernet line cards |
Integrated in chassis: not upgradable |
|
Embedded hardware-based encryption |
Yes: Up to 4-Gbps crypto support throughput |
|
Minimum Cisco IOS XE Software release |
Cisco IOS XE Software Release 3.7.0S |
|
Rack-mounting |
Yes: 19-inch |
|
Wall-mounting |
No |
|
External USB flash memory |
1-GB USB flash-memory support |
|
Redundant power supply |
Same as for Cisco ASR 1002 |
|
Power input |
Same as for Cisco ASR 1002 |
|
Power consumption |
● Maximum (DC): 590W ● Maximum (AC): 560W ● Maximum (out): 470W |
|
Airflow |
Front-to-back |
|
Operating temperature (nominal) |
32 to 104°F |
|
Operating temperature (short-term) |
32 to 122°F |
|
Operating humidity (nominal) (relative humidity) |
10 to 85% |
|
Operating humidity (short-term) |
5 to 90% |
|
Storage temperature |
-40 to 150°F (-40 to 70°C) |
|
Storage humidity (relative humidity) |
5 to 95% |
|
Operating altitude |
-500 to 10,000 feet |
|
Network Equipment Building Standards (NEBS) |
GR-1089 and GR-63 |
|
EMC standards |
Same as for Cisco ASR 1001-X |
|
Safety Standard |
UL60950-1 CSA C22.2 No. 60950-1-03 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 |
