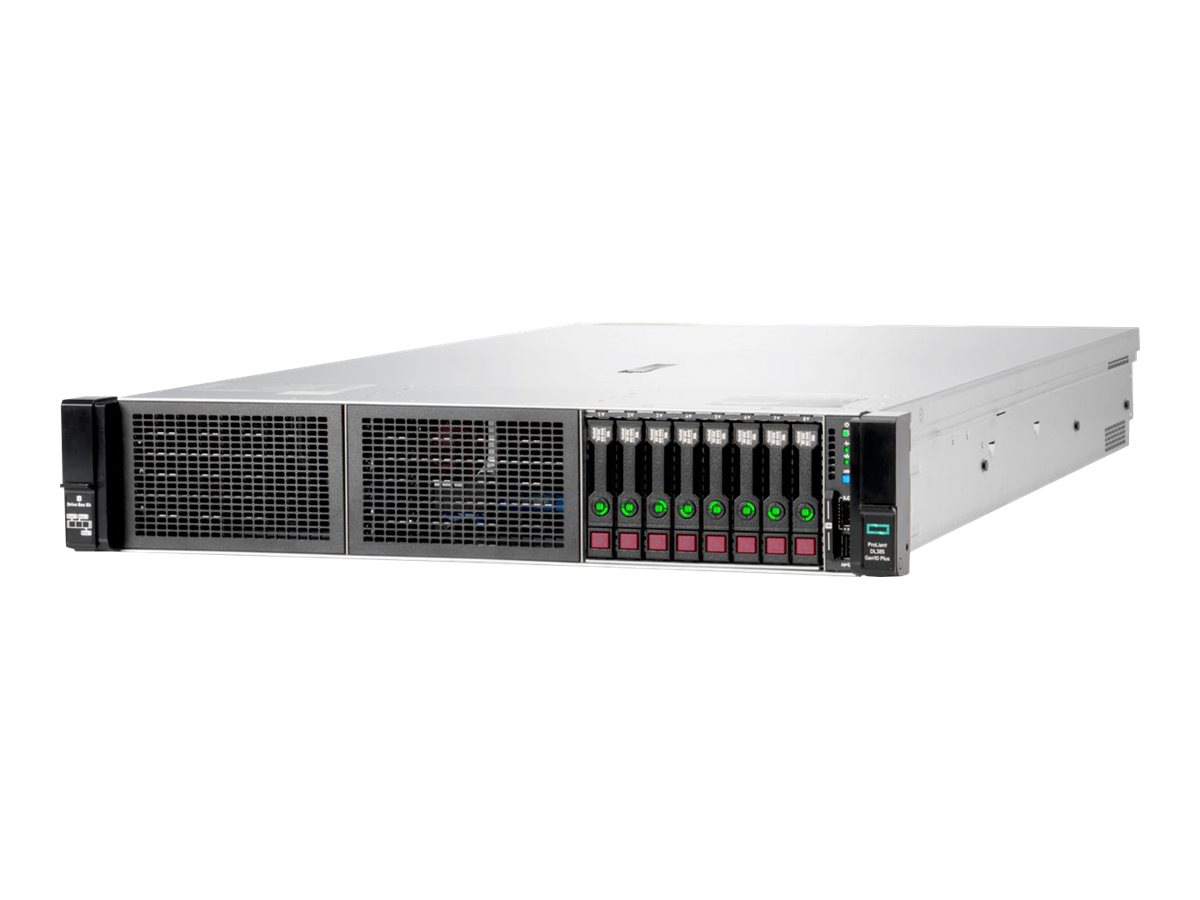

HPE DL388 Gen10 Xeon-S 4114 SP1479CN Sever comes standard with an Intel Xeon-Silver 4114 (2.2GHz/10-core/85W) processor supporting up to 2 processors; comes standard with 32GB DDR4-2666 MT/s (1 ×32 GB) memory, comes standard with 24 memory slots; built-in HPE Smart Array P408i-a/2GB SR Gen10 12Gb SAS array controller with intelligent storage battery; standard 8 SFF hot-swappable hard disk slots, up to Expands to 24+6 SFF hot-swappable hard drives, comes standard with no hard drives; comes standard with 3 PCI-E 3.0 slots; comes standard with an embedded 4-port Gigabit Ethernet card, comes standard with 1 FlexibleLOM slot; standard 1 500W hot-swappable platinum power supply with optional redundancy; 4 hot-swappable fans, up to 6 hot-swappable fans (N+1); standard without optical drive; standard HPE iLO 5; 2U rackmount , Convenient mounting rails, no cable management rack; 3 years 5*9, NBD.
Figure 1 shows the SFF front panel components.
Note:
|
① |
Box 1 (optional drives or universal media bay, see figure 2) |
③ |
Box 3 Drives 1-8 |
⑤ |
USB 3.0 port |
|
② |
Box 2 (optional drives) |
④ |
Serial label pull tab or optional Systems Insight Display |
⑥ |
iLO service port |
Figure 2 shows the Universal media bay components. It needs to be purchased separately.
Note:
|
① |
② |
③ |
④ |
⑤ |
|
USB 2.0 port |
Video display port |
Optical disk drive (optional) |
USB 2.0 port |
Drives (optional) |
Figure 3 shows the rear panel components. These installed drives need to be purchased separately.
Note：
|
① |
Primary riser slots 1-3 (Optional drive cage) |
⑤ |
Power supply 2 |
⑨ |
iLO management port |
|
② |
Optional riser slots 4-6 (Optional drive cage) |
⑥ |
Video port |
⑩ |
USB 3.0 ports |
|
③ |
Optional riser slots 7-8 (Optional drive cage) |
⑦ |
Serial port (optional)* |
⑪ |
FlexibleLOM slot |
|
④ |
Power supply 1 |
⑧ |
1Gb RJ-45 ports 1–4 |
|
|
*When a tertiary riser cage is installed as shown, the serial port can be installed in riser slot 6.
Table 1 shows the supported SFF hard drives.
|
Product number |
Description |
|
872475-B21 |
HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872477-B21 |
HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
870753-B21 |
HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872479-B21 |
HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
868818-B21 |
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
875503-B21 |
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
Q9A05A Specification |
|
|
Model |
HPE ProLiant DL388 Gen10 4114 2.2GHz 10C 85W 1P 32G-2R P408i-a 8SFF 1x500W Base CN Server |
|
Processor |
Intel Xeon-Silver 4114 (2.2GHz/10-core/85W) processor |
|
Memory |
Comes standard with 32GB DDR4-2666 MT/s (1 ×32 GB) memory, comes standard with 24 memory slots |
|
Array controller |
Built-in HPE Smart Array P408i-a/2GB SR Gen10 12Gb SAS array controller with intelligent storage battery |
|
PCIe slots |
3 |
|
Hard Drive |
Standard 8 SFF hot-swappable hard disk slots, up to Expands to 24+6 SFF hot-swappable hard drives, comes standard with no hard drives |
|
Power Supply |
Standard 1 500W hot-swappable platinum power supply with optional redundancy |
|
Fan |
4 hot-swappable fans, up to 6 hot-swappable fans (N+1) |
|
Height |
2U |
